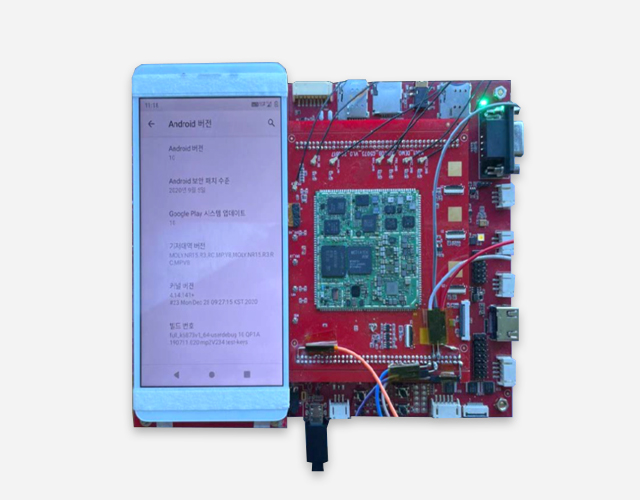

5G Mobile Development Kit

    5G Mobile Development Kit For Android 11.0

    Hardware Specification
    AP
    Cpu Types 1 ARM 2.0GHz Cortex-A76
    Cpu types 2 ARM 2.0GHz Cortex-A55
    Cores Octa (8)
    Cpu bit 64-Bit
    Heterogeceous
    Multi-Processing    		 ○
    MEMOTY & STORAGE
    Memory Type LPDDR4X
    Max Memory Frequency 2133MHz
    Max Memory Size 12GB
    Storage Type UFS 2.2
    GRAPHIC
    Gpu type Arm Mali-G57
    Video encoding H.264, H.265/HEVC
    Video encoding fps 4K @ 30FPS
    Video playback H.264, H.265/HEVC, VP-9
    Video playback fps 4K @ 30FPS
    DISPLAY
    LCD 5.5inch FHD
    Resolution 2520 x 1080
    Refresh Rate 90Hz
    CONNECTIVITY
    Cellular Technologies 2G/3G/4G/5G Multi-Mode, 4G Carrier Aggregation (CA), CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
    Specific Functions SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 120 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VONR/EPS fallback
    GNSS GPS L1CA / BeiDou B11/Glonass L1OF / Galileo E1 / QZSS L1CA
    Wi-Fi Wi-Fi 5 (a/b/g/n/ac)
    Bluetooth 5.1
    Interface Specification
    INTERFACE
    Micro USB C type
    12C 2EA
    12S 1EA
    USB 2EA
    GPIO 20ch
    UART 4EA
    SIM Single
    SD ○
    RS232 ○
    RJ45(POE) ○
    SPI ○
    VBAT ○
