HOTL Burn-in Board

    Vi-1000 (Vision Inspection System)

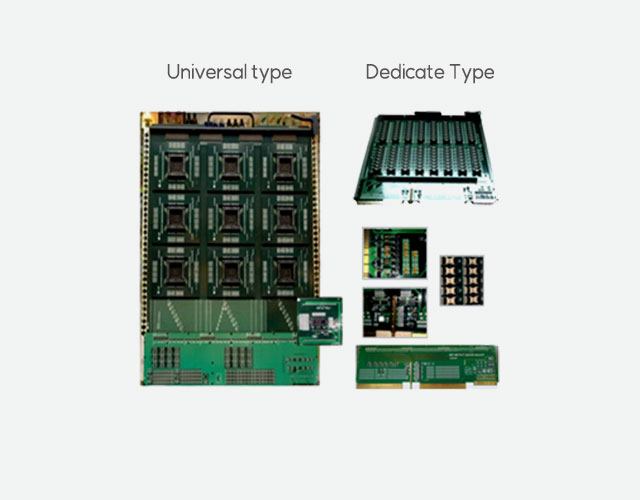

    • HTOL Board
      • 고온 동작 특성 시험을 위한 Test Board
    • Feature
      • Device를 안정적으로 Test
      • 256 Channel의 Input으로 확장성이 용이함.
    • Basic Specification
      • Channel : I/O (128~256 Ch) Power (5 Ch)
      • Max Frequency : 1M ~ 10Mhz
      • Max Temperature : 150℃
      • 적용제품 : Memory, Logic, Flash, MCU, ASIC
      • Package Type : DIP, SOJ, BGA, PGA, LGA,
    THB & HAST BOARD LIST
    THB & HAST BOARD LIST
    Board Name Type
    244TCP B/D Universal
    244TCP B/D SW Type
    436TCP B/D Universal
    100PIN Lager B/D Universal
    144PIN B/D Universal
    200PIN B/D Universal
    100PIN B/D TQFP
    100PIN Small B/D Universal
    32PIN B/D TSOP (300Mil)
    SOT23-6L SOT
    480PIN B/D Universal
    800PIN B/D Universal
    THB & HAST MAIN BOARD POSITION LIST
    THB & HAST MAIN BOARD POSITION LIST
    Board Name Connect Type
    244TCP B/D SAMTEC
    244TCP B/D SAMTEC
    436TCP B/D SAMTEC
    100PIN Lager B/D SAMTEC
    144PIN B/D SAMTEC
    200PIN B/D SAMTEC
    100PIN B/D SOCKET
    100PIN Small B/D 국내
    32PIN B/D SOCKET
    SOT23-6L SOT
    480PIN B/D SAMTEC
    800PIN B/D SAMTEC
